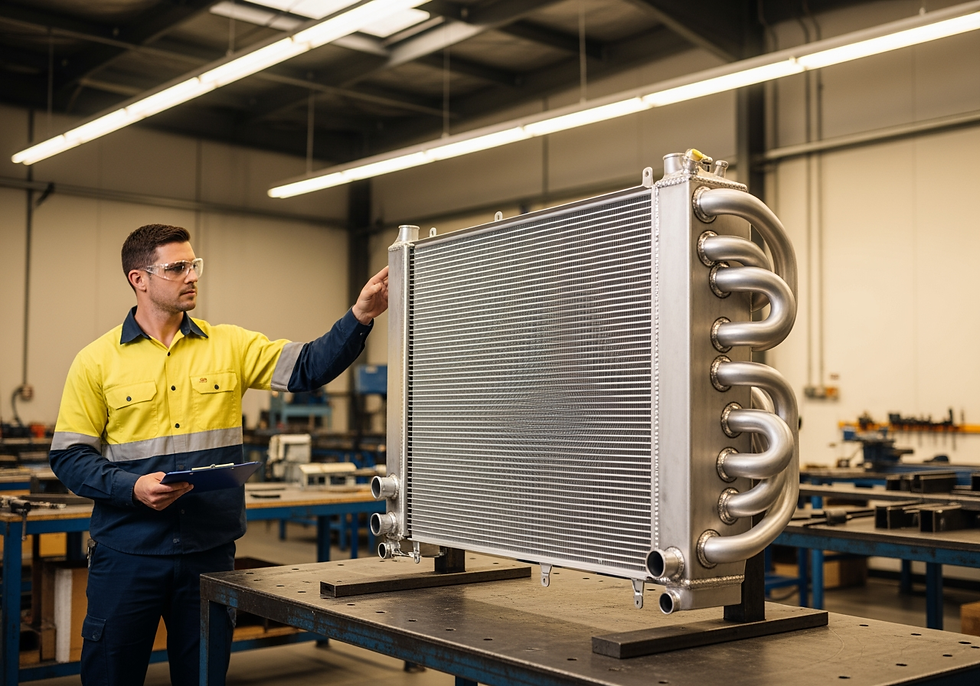

Industrial Radiators Perth: Custom Design for Mining and Heavy Equipment

Mining equipment does not stop for the heat. Haul trucks, excavators, and drilling rigs operate in Pilbara temperatures exceeding 45°C, where radiator failure means production losses measured in thousands of dollars per hour. Standard automotive radiators cannot handle these conditions. Dust, vibration, and thermal loads destroy conventional cooling systems within months.

Industrial operations across Western Australia require radiators engineered for extreme environments. Custom mining radiator design begins with understanding the specific heat loads, airflow constraints, and site conditions of each application - not by adapting off-the-shelf specifications that were never designed for Australian mining environments.

Why Standard Radiators Fail in Mining Applications

Standard radiators are designed and tested under controlled conditions. Mining environments expose every design weakness quickly and decisively.

Dust Ingress and Fin Blockage

The Pilbara's fine dust penetrates cooling cores rapidly. Standard fin spacing of 8-10 fins per inch clogs within weeks. This reduces airflow by 40-60% before operators notice temperature increases.

Industrial radiators Perth mining operations rely on use lower fin density - typically 4-6 fins per inch - with reinforced construction that resists blockage and simplifies cleaning. This design decision alone significantly extends service intervals in dusty remote sites.

Vibration and Joint Fatigue

Haul trucks experience constant vibration across rough haul roads. This fatigues brazed tube-to-header joints, causing coolant leaks that may take days to detect. By that point, engine damage has often already occurred.

Custom mining radiator design addresses this through salt bath brazing, which produces stronger joints than standard furnace brazing. Vibration-tested mounting configurations further reduce fatigue failures in mobile equipment.

Corrosion and Thermal Cycling

Coolant contamination from dust, diesel particulates, and chemical exposure attacks copper-brass radiators. Aluminium cores corrode when coolant pH drops below 7.0 - which happens frequently when maintenance intervals extend beyond recommendations.

Temperature cycling between 45°C daytime ambient and cool overnight conditions causes material fatigue in tubes and headers. Inadequately specified radiators typically show stress cracking within 2-3 years of service in these conditions.

Custom Industrial Radiator Design Process

Engineering industrial radiators Perth mining operations can rely on requires thermal calculations based on actual operating data, not generic catalogue specifications.

Heat Rejection Calculations and Radiator Thermal Performance

Radiator thermal performance calculation begins with the total heat load from engine specifications, hydraulic systems, transmission coolers, and auxiliary equipment. A large haul truck may reject 600-900 kW of heat at full load. This drives decisions on core depth, face area, and tube configuration.

HTRI radiator design software allows thermal engineers to predict heat exchanger performance with accuracy within 5% of measured results. HTRI radiator design software models the interaction between fluid properties, fin geometry, and airflow to optimise core configurations for specific operating conditions.

The radiator thermal performance calculation output informs tube diameter selection - typically 12-19mm - with larger diameters reducing pressure drop and improving cleanability in dusty environments.

Airflow Analysis and Fan Matching

Airflow analysis matches fan capacity to core air-side resistance. Mining equipment uses engine-driven fans with fixed speed ratios. This limits available airflow to defined ranges - typically 15,000-25,000 CFM for large haul trucks.

Custom mining radiator design must achieve required heat transfer within these airflow constraints. Exceeding the fan's pressure capability reduces actual airflow and degrades thermal performance regardless of core quality.

Material Selection and Configuration

Material selection balances corrosion resistance, thermal performance, and structural strength. HTRI radiator design software outputs inform fin density, row count, and tube profile selection simultaneously. Header tank design must accommodate thermal expansion whilst maintaining seal integrity through repeated thermal cycles.

Material Options for Harsh Mining Environments

Material selection determines radiator service life in mining applications more than any other single factor. The wrong material choice guarantees premature failure regardless of design quality.

Aluminium Construction for Mobile Equipment

Aluminium construction suits most mining applications. Haul truck radiator aluminium cores resist corrosion better than copper-brass in contaminated coolant, weigh 40% less, and cost less to manufacture. Modern aluminium brazing produces joints stronger than the base material, eliminating the joint failures common in older designs.

Haul truck radiator aluminium cores in well-maintained applications typically achieve 8-12 year service life. This makes aluminium the dominant material for mobile mining equipment across Western Australia.

Copper-Brass for Maximum Thermal Performance

Copper tubes transfer heat more efficiently than aluminium, allowing smaller core sizes for equivalent cooling capacity. This matters when installation space constrains radiator dimensions. Multi-row radiator core configuration designs in copper-brass can deliver equivalent thermal performance in a smaller footprint than aluminium equivalents.

However, copper-brass requires precise coolant chemistry. pH below 7.0 or chloride contamination above 50 ppm causes rapid corrosion. Service life in mining applications rarely exceeds 5-7 years without rigorous coolant management.

Stainless Steel for Corrosive Applications

Type 316 stainless steel handles coastal mining operations, desalination plant cooling, and chemical processing environments. It resists chlorides, sulfates, and acidic conditions that destroy both aluminium and copper-brass. Service life exceeds 15 years in these environments.

The thermal performance penalty requires larger core sizes. This must be factored into the radiator thermal performance calculation at the design stage. Hybrid designs - such as aluminium cores with stainless steel headers - optimise the balance between heat transfer performance and corrosion resistance at coolant contact surfaces.

Core Configuration Options

Different mining and heavy equipment applications require different core configurations based on operating conditions, space constraints, and cooling requirements.

Single-Pass Vertical Tube Designs

Single-pass vertical tube cores suit standard haul truck applications. Coolant enters the top header, flows down through vertical tubes, and exits the bottom tank. This configuration allows sediment to settle in the bottom tank rather than blocking tubes.

Core depths typically range from 50-100mm with 4-6 fins per inch for dust resistance. This multi-row radiator core configuration option remains the most common specification for Pilbara haul truck fleets.

Multi-Row and Modular Core Sections

Multi-row radiator core configuration designs provide compact cooling for space-constrained installations. Coolant makes two or three passes across the core, increasing residence time and improving heat transfer efficiency without increasing the face area.

Modular core sections enable field replacement on large excavators and draglines.

Maintenance crews replace individual sections on-site, reducing downtime from days to hours. Each section bolts to common header tanks with gaskets sealing the joints.

Oil coolers are commonly integrated alongside engine radiator cores in these modular assemblies for haul trucks and excavators.

Combination Cooler Stacks

Mining equipment often requires separate cooling for engine coolant, hydraulic oil, and transmission fluid. Combination cooler stacks integrate multiple heat exchangers in a single frame with one shared fan. This simplifies installation and reduces mounting points subject to vibration damage.

Thermal consultancy services support the design of these integrated assemblies, ensuring each cooling circuit receives adequate airflow and that no component interferes with another's thermal performance.

Testing and Quality Assurance

Industrial radiators Perth mining operations depend on must prove performance before installation, not after failure in service.

Pressure Testing and Certification

Every radiator undergoes hydrostatic pressure testing at 1.5 times working pressure - typically 150-200 kPa for mining applications. This reveals pinhole leaks, brazed joint defects, and header tank seal failures before the unit ships.

NATA-accredited testing ensures traceability and compliance with relevant Australian standards. Cooling systems analysis post-installation verifies that commissioned systems perform to design specifications under actual operating conditions.

Thermal Performance and Vibration Testing

Flow benches measure coolant flow rate and pressure drop through the core at specified temperatures. This confirms the radiator meets design specifications before installation. Performance testing typically produces results within 5% of calculated values when design parameters reflect actual site conditions.

Vibration testing mounts radiators to fixtures that replicate haul truck operating frequencies and amplitudes. Accelerated testing reveals weak points in mounting brackets and core-to-tank joints that would otherwise fail in service.

Dimensional Verification and Certifications

CMM measurement of critical dimensions confirms the radiator aligns with mounting points, fan shrouds, and coolant hose connections without modification. Mining sites require documentation including risk assessments and maintenance procedures before equipment commissioning.

Installation, Maintenance, and Local Manufacturing Advantages

Mounting System Design and Vibration Isolation

Effective mounting designs limit radiator movement to 2-3mm whilst damping vibration frequencies above 20 Hz. Rubber isolation mounts absorb vibration but allow movement that can damage coolant hoses. Rigid mounts transmit vibration directly to brazed joints. Controlled-compliance designs balance both requirements effectively.

Fan shroud clearance of 10-15mm around blade tips with sealed edges maintains efficient airflow. Gaps allow air recirculation that reduces cooling effectiveness by 20-30%. On-site project work support during commissioning ensures correct shroud alignment and mounting system setup.

Service Life and Maintenance Requirements

Well-maintained haul truck radiator aluminium cores in mining applications typically achieve 8-12 years service life. External cleaning every 250-500 hours maintains thermal performance in dusty environments.

Repair and maintenance services address tube leaks, fin damage, and header repairs before they escalate to full radiator replacement. Industrial fans and fan bearing condition are part of any comprehensive cooling system maintenance programme. Bearing failures allow blade contact with the radiator core, causing immediate and significant damage.

Local Manufacturing Advantages for Mining Operations

Local manufacturing delivers custom mining radiator design for Australian conditions without the lead times of overseas suppliers. Prototype radiators can be ready in 2-3 weeks for testing and validation. Production units follow within 4-6 weeks after approval. Import lead times typically extend 12-16 weeks, delaying projects and increasing inventory costs.

Direct face-to-face consultation with thermal engineers often identifies that radiator sizing is not the actual problem. Airflow restrictions, coolant flow limitations, or system design issues are frequently the root cause of overheating. Turnkey cooling systems address these whole-of-system challenges, integrating all cooling components into a verified, tested solution.

Proximity to major mining operations in the Pilbara and Goldfields regions also enables rapid emergency response when critical cooling failures occur.

Conclusion

Custom mining radiator design for Australian conditions requires more than selecting a catalogue unit. Dust resistance, vibration tolerance, material selection, and correct radiator thermal performance calculation are all essential to long-term reliability.

Industrial radiators Perth mining and heavy equipment operations depend on must be engineered for actual site conditions. Haul truck radiator aluminium cores dominate mobile equipment applications for their weight advantage and corrosion resistance. Multi-row radiator core configuration options combined with HTRI radiator design software thermal modelling optimise performance within real installation constraints.

Allied Heat Transfer engineers custom and standard industrial radiators for mining, heavy equipment, and processing applications across Australia. For expert advice on your radiator requirements, reach out to our industrial radiator engineers on (08) 6150 5928.
