On-Site Plate Heat Exchanger Cleaning: Mobile Service Solutions

Plate heat exchanger cleaning is one of the most cost-sensitive maintenance decisions in Australian industrial operations. These compact units pack dozens of thin metal plates into tight spaces, making them highly efficient under clean conditions and highly vulnerable when fouling accumulates. Their narrow flow passages - typically 3-5mm - leave little tolerance for scale, biological growth, or organic deposits before performance degrades.

Scale, organic deposits, and biological growth narrow those passages progressively. Heat exchanger cleaning australia wide, the problem follows the same pattern regardless of industry: heat exchanger pressure drop fouling builds gradually, raising pump energy costs and reducing thermal output. By the time operators detect symptoms, production losses often exceed the cost of preventative cleaning many times over. This guide explains how mobile heat exchanger service restores performance on-site, the cleaning methods suited to different fouling types, and how to schedule maintenance before degradation becomes costly.

The Cost of Delayed Plate Heat Exchanger Cleaning

Energy Losses and Production Impact

Fouled industrial heat exchanger units consume 15-25% more energy than clean units. A 500 kW cooling system wasting 75-125 kW continuously costs $15,000-$25,000 annually at typical Australian industrial electricity rates. Heat exchanger pressure drop fouling also forces pumps to work against increased resistance, accelerating seal wear and increasing pump maintenance frequency.

Production impacts compound financial losses. Process temperatures drift outside specifications. Batch quality suffers. Equipment protection systems trigger shutdowns. A single unplanned stoppage costs $50,000-$200,000 in lost production for medium-sized manufacturing operations.

Plate heat exchangers that receive regular plate heat exchanger cleaning maintain design performance, extend gasket life, and reduce the frequency of major overhauls throughout their service life.

Mechanical Damage from Fouling Neglect

Mechanical damage follows operational inefficiency when cleaning is deferred too long. Pumps strain against elevated pressure drops. Seals fail from excessive temperature and pressure cycling. Plates warp from uneven thermal loading caused by partially blocked channels. What begins as simple fouling escalates to equipment replacement if left unaddressed through routine maintenance programs.

Repair and maintenance services address fouling-related mechanical damage including seal replacement, plate renewal, and structural overhaul for units where routine cleaning was deferred beyond safe intervals.

Mobile vs Workshop Cleaning: Key Differences

Advantages of On-Site Mobile Service

Workshop cleaning requires complete unit removal. Operators drain systems, disconnect piping, unbolt mounting frames, and transport units to service centres. Turnaround times stretch 5-10 business days. Production stops or switches to backup equipment.

Mobile heat exchanger service eliminates transport requirements. Technicians arrive with portable cleaning circulation systems, high-pressure wash equipment, and testing instruments. Units remain mounted in their operating positions. Most plate heat exchanger cleaning procedures complete within 8-24 hours depending on unit size and fouling severity.

Cost differences favour mobile heat exchanger service for units under 200 plates. Transport, crane hire, and labour for removal and reinstallation add $3,000-$8,000 to workshop service costs. Mobile cleaning avoids these expenses and reduces downtime by 70-80%.

On-site project work teams bring specialised equipment and technical expertise directly to manufacturing facilities, assessing actual fouling conditions and recommending the most appropriate cleaning method before work begins.

When Workshop Service Is the Better Choice

Workshop service remains the better option when mechanical problems accompany fouling. Leaking gaskets require full disassembly. Damaged plates need replacement. Warped frames require straightening. These repairs demand workshop facilities and specialised equipment that cannot be mobilised to site.

Unit size also influences the decision. Plate packs under 100 plates disassemble easily for on-site mechanical cleaning when required. Larger units become impractical for full field disassembly. Technicians assess each situation individually based on actual unit condition, access constraints, and operational requirements.

How On-Site Plate Heat Exchanger Cleaning Works

System Isolation and Chemical Selection

Mobile heat exchanger service begins with system isolation. Technicians close inlet and outlet valves, drain process fluids, and connect portable cleaning circulation systems to service ports. Initial pressure vessel testing identifies existing leaks before cleaning chemicals introduce additional stress.

Chemical selection depends on fouling type. Calcium carbonate scale responds to acid-based cleaners. Organic fouling requires alkaline detergents. Iron oxide deposits need chelating agents. Water samples and visual inspection guide chemical choice, preventing plate damage from incompatible cleaning agents.

Turnkey cooling systems often include service ports and isolation valves specified for mobile heat exchanger service access, reducing preparation time during scheduled plate heat exchanger cleaning visits.

Circulation, Rinsing, and Verification

Portable cleaning circulation systems push cleaning solutions through plate packs at controlled velocities and temperatures. Solution strength, flow rate, and dwell time follow manufacturer specifications for each plate material. Acid cleaning plate heat exchanger cleaning procedures for stainless steel differ from those for titanium or aluminium units.

Technicians monitor pH and temperature continuously throughout cleaning cycles.

Rinse cycles follow chemical cleaning. Demineralised water flushes residual chemicals and dissolved contaminants from all plate passages. Final rinse water samples confirm complete chemical removal. Conductivity readings below 10 μS/cm indicate adequate flushing before return to service.

Chemical Cleaning Methods for Different Fouling Types

Acid Cleaning for Mineral Scale

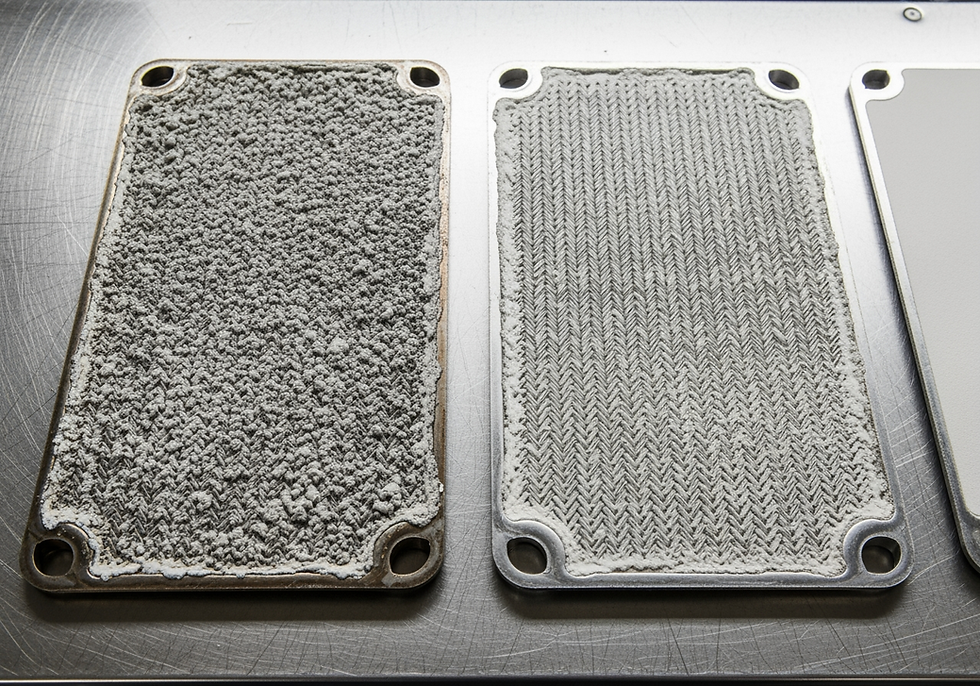

Hard water scale forms calcium carbonate, calcium sulphate, and magnesium deposits on heat transfer surfaces. Scale thickness grows 0.5-2mm annually in untreated systems, reducing heat transfer coefficients by 40-60%.

Acid cleaning procedures use citric acid solutions (5-10% concentration) safely with most plate materials. Hydrochloric acid (3-5% concentration) handles severe scaling but requires careful neutralisation and corrosion inhibitor addition. Phosphoric acid provides moderate cleaning power with minimal corrosion risk for light scale accumulation.

On-site chemical cleaning services for mineral scale circulate acid solution at 40-60°C for 2-4 hours, then follow with thorough rinse cycles to remove all acidic residue before pressure testing.

Ultrasonic cleaning provides non-contact mechanical action for scale removal in complex corrugated plate geometries where chemical circulation alone cannot reach all fouled surfaces.

Alkaline Cleaning for Biological and Organic Fouling

Biological fouling accumulates in cooling water systems. Algae, bacteria, and biofilms coat plate surfaces with organic material. These deposits insulate heat transfer surfaces while harbouring corrosion-accelerating bacteria that can attack stainless steel over time.

Alkaline detergents emulsify biological fouling effectively. Sodium hydroxide solutions (2-4% concentration) dissolve proteins and fats. Surfactants penetrate biofilm matrices. Biocides prevent regrowth during cleaning cycles.

Industrial process fluids leave different fouling signatures. Hydraulic oils polymerise into varnish coatings. Glycol solutions oxidise into acidic compounds. Food processing fluids deposit proteins and sugars. On-site chemical cleaning services technicians carry multiple chemical formulations to address mixed fouling conditions in a single service visit.

Mechanical Cleaning Techniques for Stubborn Deposits

High-Pressure Jetting and Brush Cleaning

Chemical cleaning handles 80-90% of plate heat exchanger fouling. Remaining deposits require mechanical intervention. Scale layers exceeding 3mm thickness resist chemical dissolution. Polymerised oils form tenacious films that solvents cannot penetrate.

High-pressure water jetting at 100-200 bar dislodges mechanical deposits without plate removal. Rotating nozzles directed through plate passages cut through scale and fouling layers. Water jets reach areas that portable cleaning circulation systems cannot access, including plate edges and gasket grooves.

Brush cleaning addresses localised deposits. Soft nylon brushes scrub plate surfaces without scratching stainless steel or titanium. Technicians disassemble plate packs when deposits concentrate in specific zones. Individual plate cleaning achieves results impossible through circulation methods alone.

Ultrasonic Cleaning for Precision Removal

Ultrasonic cleaning provides non-contact mechanical action for complex geometries. High-frequency sound waves create cavitation bubbles that implode against fouled surfaces. The microscopic shock waves dislodge deposits from corrugation valleys and tight geometries that brushes cannot reach.

Tube expansion testing and non-destructive inspection methods complement post-cleaning assessment, verifying plate and joint integrity before units return to service following mechanical cleaning procedures.

Inspection and Testing After Cleaning

Plate Condition Assessment

Clean plates reveal hidden problems. Corrosion pits, erosion damage, and stress cracks become visible once deposits clear. Technicians inspect every accessible plate surface using calibrated thickness gauges and dye penetrant testing.

Pitting corrosion appears as small craters in plate surfaces. Chloride-containing fluids attack stainless steel, creating localised corrosion cells. Pits deeper than 0.5mm compromise plate integrity. Erosion damage shows as thinned areas near inlet ports from high-velocity fluid impingement.

Heat exchanger pressure drop fouling inspection also includes gasket plate heat exchanger condition review. Compressed gaskets lose elasticity after repeated thermal cycling. Hardened or cracked gaskets indicate replacement is required before return to service.

Pressure Testing and Performance Verification

Pressure vessel inspections confirm mechanical integrity after plate heat exchanger cleaning. Units undergo hydrostatic pressure vessel testing to 1.5 times design pressure for 30 minutes. Zero pressure drop during the hold period confirms leak-free operation.

Performance testing validates heat transfer restoration. Temperature and pressure measurements at design flow rates confirm cleaning effectiveness. Heat transfer coefficients should recover to 90-95% of original performance. Lower recovery indicates remaining fouling or mechanical damage requiring additional service.

Preventative Maintenance Scheduling

Condition-Based Monitoring

Cleaning frequency depends on water quality, process conditions, and operating temperatures. Hard water systems require quarterly service. Treated water systems extend intervals to 6-12 months. Process fluid applications vary widely based on fluid cleanliness.

Pressure differential monitoring provides early fouling warnings. Baseline readings establish clean unit performance. Heat exchanger pressure drop fouling increases of 20-30% indicate significant accumulation. Scheduling plate heat exchanger cleaning at this point prevents severe deposits while minimising energy waste and production risk.

On-site chemical cleaning services scheduled on condition-based triggers rather than fixed time intervals reduces total maintenance costs by 30-40% compared to arbitrary schedules that may clean unnecessarily or miss developing fouling between visits.

Temperature and Flow Rate Monitoring

Temperature monitoring reveals heat transfer degradation. Outlet temperature drift of 3-5°C beyond setpoints signals reduced efficiency requiring attention. Flow rate reduction indicates advanced fouling. Pumps maintain design pressures but deliver reduced flow as passages restrict.

Regular monitoring using these two indicators - pressure drop and outlet temperature - provides the most accurate picture of actual unit condition, enabling mobile heat exchanger service to be scheduled at optimal intervals.

Safety Considerations for On-Site Cleaning

Chemical Handling and Isolation

On-site chemical cleaning operations introduce hazards that require systematic management. Acid and alkaline solutions cause burns on contact. Mixing incompatible chemicals generates dangerous reactions. Pressure testing carries mechanical failure risk.

Work areas receive physical barriers preventing personnel access during cleaning. Chemical storage follows Australian Dangerous Goods regulations. Spill containment equipment is deployed throughout operations. Lock-out/tag-out procedures prevent accidental valve operation during service.

Ventilation requirements vary by chemical type. Acid cleaning generates corrosive vapours requiring extraction in enclosed spaces. Personal protective equipment includes chemical-resistant suits, face shields, gloves, and respirators. Safety showers and eyewash stations locate within 10 metres of all work areas.

Environmental Compliance

Spent cleaning solutions require neutralisation before disposal. pH adjustment converts acids and alkalis to neutral salts. Collected fluids are disposed of through licensed waste facilities - never to stormwater drains or on-site ground. All disposal follows Australian environmental regulations applicable to the specific chemical compounds used.

Conclusion

Plate heat exchanger cleaning performed regularly through mobile heat exchanger service interrupts the deterioration cycle before energy losses, production impacts, and mechanical damage compound. On-site chemical cleaning services and mechanical methods address all common fouling types within single service visits. Portable cleaning circulation systems deliver heat exchanger cleaning australia wide without transport delays, completing most jobs within 8-24 hours at the facility.

Acid cleaning procedures restore mineral scale-fouled units. Alkaline methods address biological and organic deposits. Condition-based monitoring using heat exchanger pressure drop fouling and outlet temperature trends schedules cleaning at optimal intervals, reducing total maintenance costs while maintaining peak thermal performance.

Allied Heat Transfer provides comprehensive heat exchanger cleaning australia wide across industrial facilities. Mobile service teams bring specialised equipment and technical expertise directly to site.

To schedule mobile heat exchanger service for your facility, reach out to our industrial cleaning engineers on (08) 6150 5928.
