Industrial Radiator Workshop Services: Repair, Re-Core and Rebuild in Perth

Mining trucks stalled in the Pilbara. Excavators overheating on construction sites. Generators failing during critical operations. These scenarios cost Australian businesses thousands of dollars per hour in lost productivity, and they often trace back to a single failing component: the industrial radiator.

Industrial radiators operate in some of Australia's harshest environments. Dust, vibration, extreme temperatures, and corrosive conditions gradually degrade these critical cooling components. The question is not whether your radiator will need service - it is whether problems are addressed proactively before catastrophic failure occurs.

Why Industrial Radiators Fail in Australian Conditions

Australian industrial environments accelerate radiator degradation faster than most global operating conditions. Understanding these failure mechanisms helps maintenance teams identify warning signs early.

Dust Accumulation and Airflow Restriction

Western Australia's mining regions expose radiators to fine silica dust that penetrates core fins and blocks airflow. Even a 20% reduction in airflow can increase operating temperatures by 15-20°C. This thermal stress accelerates corrosion and reduces component life by 30-40%.

Industrial radiator cleaning service schedules must be matched to actual dust exposure. Equipment in the Pilbara typically requires external cleaning every 250-500 operating hours to maintain rated airflow and thermal performance.

Vibration-Induced Joint Fatigue

Mobile equipment experiences constant vibration that fatigues radiator mounting points, tube joints, and header connections. Over time, these stresses create cracks that leak coolant. Haul trucks and excavators operating on rough terrain face particularly severe vibration loads.

Effective industrial radiator repair Perth begins with understanding the root cause. Tube-to-header joint failures account for approximately 40% of mining radiator failures - most of which are vibration-related.

Corrosion, Coolant Contamination, and Impact Damage

Coolant degrades over time, becoming acidic and losing corrosion inhibitors. Contaminated coolant attacks aluminium and copper components from the inside whilst external moisture accelerates fin and tank corrosion. Rock strikes and equipment collisions also damage cores and mounting structures. Even minor impact damage can compromise core integrity, leading to leaks and reduced cooling capacity.

Signs Your Industrial Radiator Needs Professional Service

Early detection prevents minor issues from becoming major failures. These indicators warrant immediate inspection:

• Operating temperatures consistently 10-15°C above the normal baseline

• Visible coolant leaks around headers, tanks, or tube connections

• White or green coolant residue on radiator surfaces

• Bent or damaged core fins blocking more than 15% of frontal area

• Coolant discolouration with brown or rusty appearance

• Pressure cap releasing steam during normal operation

• Reduced coolant levels requiring frequent top-ups

When Immediate Inspection Is Required

When operators notice these symptoms, immediate professional inspection prevents cascade failures. Overheating damages engines, hydraulic systems, and other temperature-sensitive components. The cost of inspection is a fraction of the cost of engine damage caused by delayed action.

A repair and maintenance assessment determines whether the radiator requires on-site repair, workshop service, or core replacement. This assessment drives the most cost-effective outcome for the equipment owner.

Pressure Testing as a Diagnostic Tool

Pressure testing to 1.5 times operating pressure identifies leaks invisible to visual inspection. This radiator pressure testing procedure reveals hairline cracks and pinhole leaks that develop into significant failures under operating conditions. Every industrial radiator repair Perth assessment should include pressure testing as a baseline diagnostic step.

Workshop Repair Services

Professional industrial radiators repair facilities provide comprehensive services that extend equipment life and restore cooling performance.

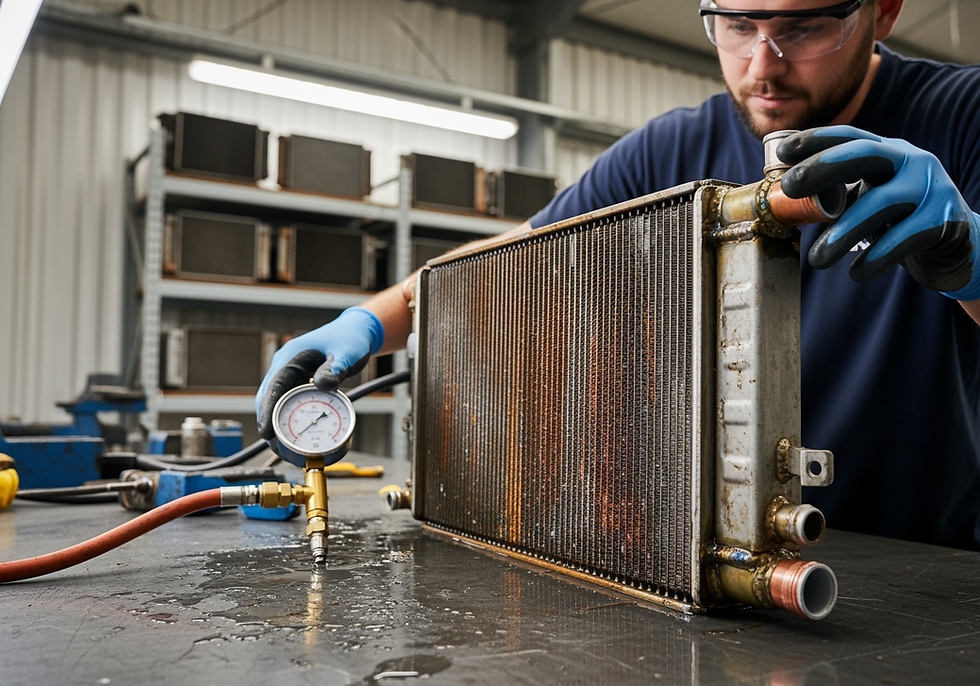

Pressure Testing and Professional Leak Detection

The radiator pressure testing procedure uses specialised equipment to pressurise the core to 1.5 times working pressure. Dye testing reveals hairline cracks and pinhole leaks that visual inspection misses. This diagnostic step determines whether repair or replacement makes economic sense before any further work is undertaken.

The radiator pressure testing procedure also establishes a performance baseline after repairs are completed - confirming the unit is leak-free before returning to service.

Industrial Radiator Cleaning Service

Professional industrial radiator cleaning service removes scale, sludge, and corrosion products that reduce heat transfer efficiency. Chemical cleaning dissolves internal deposits whilst high-pressure flushing clears blocked tubes. External cleaning removes dust and debris from fins using specialised equipment that does not damage delicate core structures.

Ultrasonic cleaning provides precision fouling removal for components where chemical methods are insufficient. This approach is particularly effective for aluminium cores with tightly-spaced fins that are difficult to clean by conventional means.

Tube Repair and Tank Repairs

Minor tube leaks can be sealed using epoxy or mechanical plugging techniques. Plugging up to 10% of tubes maintains adequate cooling capacity for most applications. Beyond this threshold, radiator re-core services become necessary to restore full thermal performance.

Cracked tanks and headers can be welded or brazed depending on material composition. Aluminium radiators require TIG welding with appropriate filler materials. Copper-brass units use silver brazing for leak-proof joints that withstand repeated thermal cycling.

Re-Core Services: When Replacement Makes Economic Sense

Radiator re-core services replace the entire core assembly whilst retaining tanks, mounting brackets, and fittings. This typically costs 40-60% less than a complete new radiator whilst delivering equivalent performance.

Core Condition Assessment and Economic Threshold

The repair-versus-re-core decision depends on technical assessment and economic calculation. If more than 30% of tubes show wall thinning or corrosion, re-coring typically proves more economical than repair. Ultrasonic testing measures remaining tube wall thickness, predicting remaining service life accurately.

Frame integrity matters significantly in this assessment. A structurally sound frame allows re-coring at 50-70% of new radiator cost. A severely corroded or damaged frame may cost more to repair than the core replacement itself.

The radiator core replacement workshop process begins with complete core removal and dimensional measurement. Technicians measure core depth, fin density, and tube configuration to source or manufacture an exact replacement. The new core is then brazed or mechanically fastened to existing tanks using appropriate sealing techniques.

Material Selection and Performance Upgrades

Radiator re-core services present opportunities to upgrade materials for improved durability. Modern aluminium cores offer superior corrosion resistance and lighter weight compared to older copper-brass designs. Fin density adjustments during re-coring can increase heat rejection by 15-20% without changing overall radiator dimensions.

The radiator core replacement workshop team can also address chronic overheating problems during re-coring. Tube configuration changes, increased core depth, or modified fin density can reduce operating temperatures by 10-20°C in equipment that has historically run hot.

Allied Heat Transfer provides radiator re-core services using copper, aluminium, or stainless steel cores depending on application requirements and operating environment.

Complete Radiator Rebuilds

Severe damage or multiple component failures require complete rebuilds that address every element of the radiator assembly. Rebuilds suit high-value equipment where new radiator costs exceed $5,000-15,000.

Comprehensive Inspection and Component Assessment

Rebuild processes begin with complete disassembly and component inspection. The radiator core replacement workshop team assesses core condition, tank integrity, mounting bracket strength, and fitting serviceability. This determines which components can be refurbished versus replaced.

Tube expansion testing verifies tube-to-header joint integrity as part of the rebuild assessment. Non-destructive testing identifies joints at risk of failure before they cause coolant loss in service.

Radiator Rebuild Quality Assurance and Testing

Radiator rebuild quality assurance includes hydrostatic pressure testing to 1.5-2.0 times operating pressure for a minimum of 30 minutes. Thermal performance testing verifies heat rejection capacity meets or exceeds original specifications. Temperature and flow measurements document performance as a baseline for future condition monitoring.

Quality radiator rebuild quality assurance processes include 12-month warranties covering workmanship and materials. This warranty reflects confidence in the rebuild process and protects equipment owners against premature failures.

The maintenance workshop facility maintains pressure testing equipment, core cleaning systems, and brazing facilities. Stock of common core sizes enables rapid turnaround without waiting for custom manufacturing.

Rebuild Economics for High-Value Equipment

A properly rebuilt radiator delivers 80-90% of new radiator service life at 30-50% of replacement cost. For equipment with five or more years of remaining operational life, rebuilding provides superior return on investment.

Pressure vessel inspections during the rebuild process satisfy compliance requirements and provide documentation for mine site commissioning processes.

Preventative Maintenance to Extend Service Life

Professional preventative maintenance extends radiator life by 50-100% compared to run-to-failure approaches. Scheduled servicing costs a fraction of emergency repairs and eliminates unexpected downtime.

Recommended Service Intervals

Cleaning and service intervals depend on operating environment and equipment type:

• Mining equipment: External cleaning every 500 hours, internal flushing every 2,000 hours

• Construction equipment: External cleaning every 1,000 hours, internal flushing every 3,000 hours

• Stationary equipment: Annual external cleaning, internal flushing every 18-24 months

Industrial radiator cleaning service by professional technicians removes embedded contaminants that field cleaning misses. This is particularly important for equipment operating in heavy dust environments where standard compressed air cleaning leaves residual fouling.

Coolant Management and External Protection

Monthly coolant pH and inhibitor level testing identifies chemistry problems before corrosion damage occurs. pH below 7.0 or above 10.5 accelerates corrosion on aluminium and copper components. Replacing coolant every 2-3 years regardless of appearance maintains inhibitor effectiveness.

Installing radiator guards on mobile equipment prevents impact damage from rocks and debris. Corrosion-resistant coatings on external surfaces protect fins and tanks in coastal or chemically aggressive environments.

Planned Maintenance vs Reactive Repair Costs

Basic cleaning and minor repairs: $300-800. Industrial radiator repair Perth re-coring: $1,500-4,000 depending on size and complexity. Complete rebuilds: $3,000-8,000 for large mining equipment radiators. Emergency repairs carry 50-100% premiums on standard pricing.

New radiator costs for mining equipment range from $8,000-25,000 for OEM units. Aftermarket equivalents typically cost $4,000-12,000. Planned maintenance and timely repair intervention consistently delivers better total cost outcomes than reactive approaches.

Stock products including standard off-the-shelf cores and pre-made units are available for common equipment types, reducing lead times for urgent replacements.

Conclusion

Industrial radiator repair Perth services range from basic pressure testing and cleaning to complete core replacements and full rebuilds. The right approach depends on core condition, frame integrity, equipment value, and urgency.

Radiator re-core services deliver 80-90% of new radiator performance at 40-60% of replacement cost. Radiator rebuild quality assurance processes verify performance before equipment returns to service. Regular industrial radiator cleaning service and coolant management remain the most cost-effective strategy for extending service life across mining, construction, and manufacturing equipment.

For professional industrial radiator repair Perth services - including pressure testing, re-coring, and complete rebuilds - book a radiator repair or rebuild assessment on (08) 6150 5928.
