Calculating the ROI of a Heat Exchanger Upgrade: A Guide for Capital Expenditure

Plant managers often delay thermal equipment upgrades because the upfront capital expenditure looks steep on a balance sheet. However, failing thermal equipment costs thousands monthly through energy waste, production slowdowns, and emergency repairs.

The true cost of deferring an upgrade is frequently much higher than the actual cost of the upgrade itself. The difference between a justified upgrade and a budget rejection comes down to one crucial metric. That metric is the capital expenditure return on investment.

When calculated correctly, this financial model shows exactly when an upgrade pays for itself. It demonstrates how much money the upgrade saves across the equipment's entire operating life. Building a strong business case requires accurate baseline operating costs and highly realistic post-upgrade performance projections.

Engineers often capture projected energy savings but miss critical operational downtime costs. They use theoretical performance metrics but ignore real-world fouling factors and bypass losses. Understanding comprehensive equipment lifecycle costs is absolutely essential for building a successful business case. This methodology applies to shell and tube replacements, plate unit upgrades, and complete cooling system overhauls.

The Hidden Costs of Operating Old Heat Exchangers

Energy Waste and Fouling-Driven Inefficiency

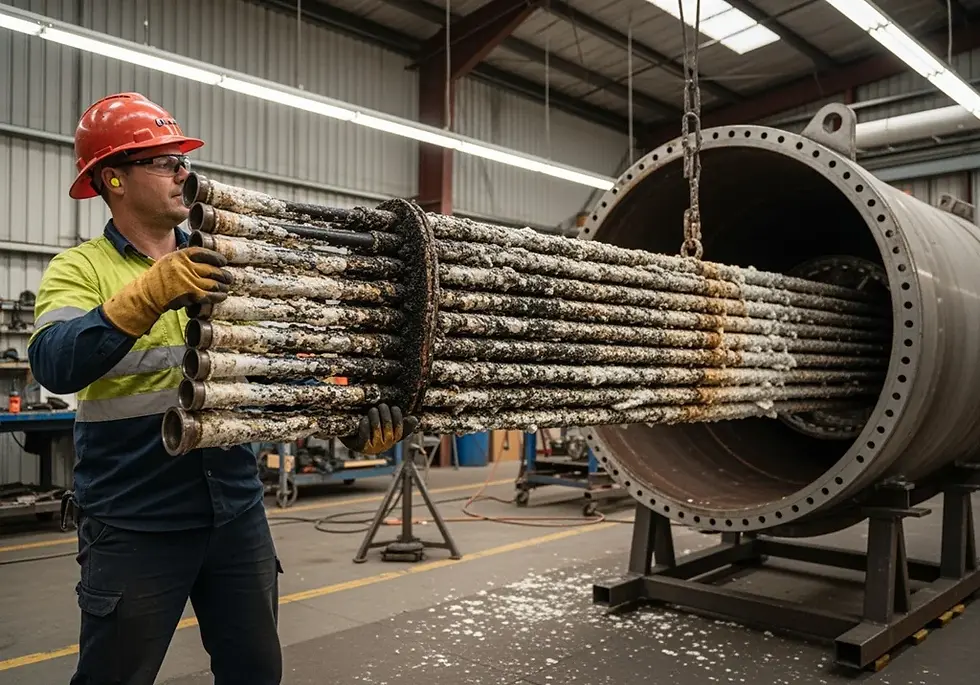

A heat exchanger does not fail dramatically overnight. It degrades quietly, bleeding thermal efficiency month after month while maintenance teams patch it along. Understanding this continuous degradation pattern is the starting point for any equipment lifecycle cost analysis. Fouling builds steadily inside the tubes and on internal surfaces. This scale reduces overall thermal transfer by twenty to forty percent over three to five years.

The system inevitably compensates by running longer or pushing fluids at hotter temperatures. This compensation pushes energy consumption up significantly compared to a clean, modern unit. Older shell and tube heat exchangers might still move the required heat load eventually. However, they use excess pumping power to overcome severe internal flow restrictions.

The financial impact of this operational inefficiency is direct and easily measurable. A facility running a large pump to compensate for fouling-driven pressure drop spends heavily on electricity. This excess consumption occurs before accounting for auxiliary equipment running to compensate for lost capacity. Compressors and chillers work much harder when primary thermal transfer equipment fails to perform optimally.

Maintenance Frequency and Downtime as Cost Drivers

Maintenance frequency is the clearest early indicator that a replacement is approaching strict financial justification. When thermal equipment needs dedicated attention every few months instead of every three years, costs compound rapidly. Labour, replacement spare parts, and system downtime quickly erode overall plant operating margins. For continuous operations like mining, equipment failures are particularly severe and financially costly.

Even a short unplanned shutdown costs tens of thousands in lost production throughput. When these frustrating failures recur regularly, the annual downtime cost alone often exceeds the replacement equipment price. Most industrial operations spend heavily maintaining mid-sized thermal units well past their optimal service life. A complete replacement that eliminates these ongoing maintenance costs pays back very quickly.

This payback is achieved on routine operating savings alone, before energy improvements are even counted. Implementing modern industrial cooling systems stops this costly cycle of reactive maintenance. industrial cooling systems provide reliable thermal stability that keeps production lines running without unexpected interruptions.

Step 1: Calculate Current Operating Costs

Energy Costs: Pump, Fan, and Auxiliary Equipment

Start your baseline calculation with twelve full months of actual measured site data. Pull maintenance records, electricity bills, and comprehensive equipment downtime logs. Estimates produce weak business cases that corporate finance teams will naturally challenge and reject. Measured operational data produces solid financial cases that management committees approve confidently.

To calculate primary pump energy, multiply the kilowatt rating by operating hours and the electricity rate. If severe internal fouling increases system pressure drop by twenty-five percent, pump power rises significantly. This adds thousands of dollars annually in excess electrical consumption for just one pump. You must include all energy consumers in the complete system scope to be accurate.

Factor in cooling tower power, auxiliary fans, and variable speed drive electrical losses. Analysis that captures only primary pump energy systematically underestimates the full energy cost. Older air cooled heat exchangers often run their fans continuously at full speed to compensate for degraded fins.

Maintenance, Labour, and Emergency Repair Costs

Scheduled maintenance costs form a major part of the current operating baseline. These expenses include scheduled chemical cleaning, gasket replacements, tube plugging, and major mechanical overhauls. Track all internal labour hours dedicated strictly to keeping the failing unit operational. Internal maintenance teams carry a massive opportunity cost when managing failing plant equipment constantly.

Time spent managing a degraded unit is time not spent on other critical plant machinery. Emergency callouts cost significantly more per incident before production downtime losses are even included. Comprehensive heat exchanger repair and historical maintenance records provide the actual cost data needed for this calculation.

A complete history of what the facility has spent on the unit is highly compelling evidence. It proves that ongoing repair is a poor financial strategy compared to complete asset replacement. Heat exchanger repair costs escalate sharply as equipment approaches the absolute end of its metallurgical lifespan.

Step 2: Project Post-Upgrade Operating Costs

Energy Improvements from Modern Heat Exchanger Design

Modern thermal designs cut operating costs through better engineering and highly durable materials. Higher heat transfer coefficients mean the same thermal duty is achieved with less physical surface area. This efficiency allows for much lower operating temperatures and reduced mechanical system strain. Lower pressure drop directly reduces the mechanical pumping power requirements across the entire fluid circuit.

A new unit with a lower pressure drop allows the primary pump to run at reduced speed. Applying the affinity laws for pumps, that reduces power consumption drastically, saving substantial electricity costs annually. Variable speed drives on cooling fans or circulation pumps deliver massive additional power reduction. They actively match airflow and fluid flow rates to actual process thermal loads.

This prevents equipment from running at constant maximum speed when ambient conditions are favourable. Upgrading to highly efficient plate heat exchangers often reduces primary pumping costs by half. plate heat exchangers offer exceptional thermal transfer rates with very minimal pressure drop penalties.

Maintenance Interval Extension and Downtime Reduction

Modern materials resist the aggressive corrosion that attacks older carbon steel units in harsh service. Duplex stainless steel, titanium, and copper-nickel alloys extend service intervals significantly across Australian sites. This reduces the frequency of comprehensive mechanical overhauls and planned maintenance outages. The downtime cost comparison is often the most persuasive element of a capital expenditure business case.

An older unit generating unplanned failures carries massive annual production downtime costs. A new unit in good service should generate near-zero unplanned failures in its early operational years. Eliminating just forty-eight hours of unplanned plant downtime saves massive amounts in lost production throughput. Turnkey upgrades that replace ageing assemblies capture equipment and system efficiency improvements simultaneously.

This holistic approach often delivers better equipment lifecycle cost outcomes than replacing individual components in sequence. Plate heat exchangers feature easy disassembly, which drastically reduces the labour hours required for routine cleaning. Plate heat exchangers are particularly cost-effective to maintain in hygienic food and beverage applications.

Step 3: Calculate Total Investment Required

Equipment Costs by Type and Material

To build an accurate financial case, obtain detailed quotes covering the complete project scope. Standard equipment price ranges provide a reasonable starting point for preliminary project budgeting. Custom tubular units vary widely based on physical size and specified thermal duty. Standard gasketed plate units offer highly efficient thermal transfer at a very competitive capital cost point.

Large industrial radiators represent significant but absolutely necessary investments for heavy machinery protection. Material selection significantly impacts the final replacement cost of any thermal transfer unit. Standard carbon steel costs substantially less than 316 stainless steel or advanced duplex alloys. Specifying the correct material for the actual process service conditions is a key cost optimisation lever.

Avoid defaulting to cheap carbon steel if the process fluid demands higher corrosion resistance. Proper material selection prevents premature failure and ensures the unit reaches its designed operational lifespan. cooling systems analysis helps engineers determine the exact metallurgical requirements for specific process fluids.

Installation, Engineering, and Site-Specific Costs

Installation costs are where most return on investment calculations fail in actual practice. You must budget a significant percentage of the equipment cost for installation, engineering, and commissioning. This budget includes mechanical labour, complex piping modifications, and necessary electrical integration work. Comprehensive thermal design drawings and compliance certification add to the upfront engineering scope.

Site-specific premiums add significantly to the total project cost in remote Australian industrial locations. Remote site mobilisation, shutdown overtime labour, and heavy crane rigging add substantial cost margin. A realistic total investment for a replacement runs much higher than the base equipment price alone. Include full mobilisation and installation scope in the calculation to avoid understating the total investment required.

Sending older units to a maintenance workshop for refurbishment involves major transport logistics and heavy lifting costs. These logistical costs must be weighed carefully against the price of simply installing brand new equipment.

Step 4: Build the Business Case

Payback Period, NPV, and IRR Presentation

Present the calculated numbers in a format that your corporate finance team understands easily. Calculate the simple payback period by dividing the total initial investment by the annual operational savings. Determine the net present value over the expected fifteen-year equipment lifespan using a standard corporate discount rate. The internal rate of return typically looks very strong for well-specified thermal equipment replacements.

Total cost of ownership comparison is the most compelling presentation format available for engineering proposals. Over fifteen years, continuing to operate an ageing unit costs millions in maintenance and downtime. A modern replacement operating at optimal energy efficiency totals a tiny fraction of that cost. This net saving over the equipment life reframes the upgrade conversation entirely.

It changes the critical question from whether you can afford to upgrade, to whether you can afford not to. Advanced industrial cooling systems deliver predictable financial returns that satisfy strict corporate capital expenditure requirements. Industrial cooling systems ensure process stability, which directly protects primary manufacturing revenue streams.

Risk Factors and Non-Financial Benefits

Always present the financial numbers alongside the associated operational and safety risk factors. An ageing process unit carries an increasing probability of catastrophic mechanical failure or fluid leakage. Include this expected failure cost in the financial analysis as a strict risk-adjusted cost of deferral. Non-financial benefits belong firmly in the engineering business case document as well.

Improved process temperature control, better product quality, and reduced environmental risk from fluid leaks add immense organisational value. Enhanced workplace safety and simplified predictive maintenance planning are critical operational benefits for site managers. Finance teams increasingly recognise these environmental and safety benefits even when they cannot be precisely costed.

Meeting strict AS1210 pressure vessel compliance standards is a non-negotiable safety requirement across Australia. Replacing non-compliant equipment removes massive legal and operational liability from the site management team. Expert thermal consultancy helps quantify these technical risk factors accurately for executive board presentations.

Common Mistakes in ROI Calculations

Underestimating Installation and Downtime Costs

Underestimating installation costs is the most common reason strong engineering cases get rejected outright. A business case showing a low equipment cost that later requires massive installation investment destroys engineering credibility. Always build generous installation margins into the initial figure, then adjust accurately when site-specific quotes arrive. Ignoring production downtime value makes vital plant upgrades look far less attractive than they actually are.

You must calculate lost production accurately using actual plant throughput rates and current market commodity prices. The true cost of lost production often exceeds all annual mechanical energy costs combined. Downtime analysis frequently reveals that a single unplanned process failure justifies the entire replacement investment immediately. Do not ignore the cost of scaffolding, lagging, cladding, and non-destructive testing during installation.

These secondary installation tasks often equal the cost of the primary mechanical pipe fitting work. Heat exchanger repair strategies often underestimate the hidden costs of opening and closing complex process systems. Heat exchanger repair inevitably involves significant peripheral costs like fluid disposal and environmental containment measures.

Using Theoretical Savings and Ignoring Escalation

Theoretical energy savings assume perfectly clean equipment, perfect fluid flow distribution, and optimal process control. Real-world savings from replacements typically run lower than the theoretical maximum calculated by software. This gap is due to residual fouling during run-in, control valve imperfections, and standard process flow variability. Use a realistic percentage of theoretical savings as your conservative base case for the calculation.

Show sensitivity analysis at different operational throughput levels to provide a highly robust financial model. Forgetting cost escalation over twenty years significantly understates long-term lifecycle cost savings. Energy costs and maintenance labour rates rise annually across the Australian industrial and manufacturing sector. A project delivers substantially more financial value in year ten after escalation is modelled correctly.

Ensure your model accounts for the rising cost of carbon emissions and future energy compliance penalties. Shell and tube heat exchangers designed for high efficiency will insulate the plant against future energy price shocks. Shell and tube heat exchangers represent long-term infrastructure investments that demand accurate long-range financial modelling.

When to Upgrade vs. Repair

Indicators That Repair Remains Viable

Repair remains the better financial choice when the process unit is under ten years old. This applies strictly when internal corrosion is localised and thermal performance remains near its original design baseline. If unplanned downtime frequency is stable and total repair cost is low, targeted repair makes financial sense. A five-year-old tubular unit showing localised tube failures may be a very strong re-tubing candidate.

If the main shell is structurally sound, re-tubing is far more cost-effective than full asset replacement. Routine mechanical intervention is a clear decision when structural pressure boundary integrity is verified by testing. Engineering experts can evaluate the equipment to determine if mechanical repair will extend its life safely. However, repair is only viable if the original design still matches current plant process conditions.

If plant throughput has increased significantly, repairing an undersized unit restricts overall production capacity. Shell and tube heat exchangers can often be upgraded with enhanced tube geometries during a repair cycle.

Indicators That Replacement Delivers Better Value

You should replace the unit when thermal effectiveness drops sharply below the original process design parameters. If tube failures occur frequently, or pressure testing reveals widespread internal corrosion, full replacement is necessary. When energy consumption increases drastically, or repair costs exceed the majority of replacement costs, upgrade immediately. AS1210 pressure compliance gaps that cannot be resolved through basic mechanical repair also mandate full replacement.

For borderline engineering cases, calculate the five-year total cost of ownership for both options carefully. Include realistic mechanical failure probabilities and their associated financial costs in the spreadsheet. A unit that appears cheaper to repair often shows a higher total cost when failure probability is modelled properly. Heat exchanger replacements offer the chance to implement fundamentally better thermal technology.

Upgrading to a more efficient design reduces process bottlenecks and increases overall site production capacity. A modern heat exchanger provides operational reliability that patched equipment can never truly match. A new heat exchanger resets the maintenance clock entirely, freeing up valuable site labour resources.

Conclusion

Capital expenditure return on investment for upgrades typically ranges from an eighteen-month to a four-year payback period. Both scenarios deliver extremely strong financial returns over a long equipment life when calculated accurately. The calculation requires measured baseline data, complete installation costs, and highly accurate production downtime valuation. Most industrial facilities underestimate their current operating costs by a very significant financial margin.

Build the engineering business case with a realistic payback period, net present value, and internal rate of return. Quantify the total cost of ownership over fifteen years to demonstrate the full asset value clearly. Include risk-adjusted failure probabilities to highlight the severe financial danger of deferring essential equipment upgrades.
